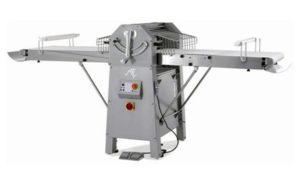

Dough sheeters Ferneto – stainless steel
| ✔ Standard-Production Equipment Ο Option 📄 By request Θ Without application |
|
Θ Epoxy painted galvanised carbon steel frame
✔ Feet in AISI304 stainless steel
✔ Stainless steel AISI304 frame
Θ Structure with sealing components
Θ Structure designed to be fixed to the floor
✔ Removable tables, reinforced, in AISI304 stainless steel
Θ Machine with IP45 protection – cleaning with water at a maximum flow of 12.5 l/min. and relative max. pressure 0,4 bar (IPx5according to the EN60529 standard)
Θ Machine with IP45 protection against the entrance of foreign bodies with a thickness of over 1mm and a depth of less than 100mm
✔ Incorporated wheels for easier handling
✔ Ground compensating levelling elements
|
|
✔ Handy adjustable roller gap: 1 a 40mm (minimal sheeting thickness: 1mm, depending on dough type)
✔ Spped tables perfectly synchronized. The exit conveyor is faster to avoid dough obstruction and prevents tearing of delicate dough.
✔ Electrical hand controls (left and right) for controlling the belt movement direction
O Electrical pedals (left and right) for controlling the belt movement direction
O Removable foot controls
O Prepared to dough cutters (LMA624 / LMA630)
✔ Inverter drive
✔ Digital control panel with 20 speeds
O Analogue control panel with 1 or 2 speeds, without inverter
Θ Analogue control panel with 4 speeds, with inverter
Θ Electric flour duster in epoxy painted galvanised carbon steel
O Electric flour duster in AISI304 stainless steel
✔ System for storing the two tables with a vertical connection bar
|
|
✔ 2 dough roller pin on DIN PE500
✔ Sheeting belts in polyester
📄 Sheeting belts in several materials, textures and applications
✔ Security bars in AISI304 stainless steel

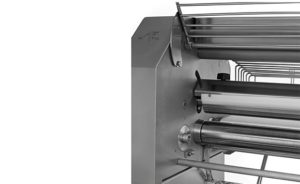

✔ Laminating rollers, dough roller supports, side separation rods, and belt tensioners built from AISI304 stainless steel
✔ Superior scraper in AISI304 stainless steel
✔ Lower scraper in AISI304 stainless steel
✔ Scraper blades made from technical polymer
✔ Scraper holder shaft made from carbon steel
Θ Scraper holder shaft made from AISI304 stainless steel
✔ Bearings of the table supports, of the fixed roller and of the drive roller fitting and positioning, built from AISI304 stainless steel
✔ Flour container and trimmings collector, dough trimmers and tables built from AISI304 stainless steel
✔ Anti-vibration support fixers and threaded support made from AISI304 stainless steel
|
|
✔ Silent and efficient reduced maintenance transmission, using “V” profile belts
✔ Easy maintenance and repairing
✔ Homologated with CE mark
📄 Other especifications and certifications |
Sheeters RONDO
Econom
Maximum output in a minimum of space. Available as both a table model and a version with base.
Rondomat
The perfect combination of ergonomics, hygiene and performance capability.
Manomat / Automat
The hard workers among the mechanical dough sheeters.
Rondostar ECO
The basic electronic RONDO model with the highest performance, ideal for sheeting and booking.
Rondostar
This electronic dough sheeter with its modern control system makes perfect sheeting easy.
Compas HD
The very fast, computer-controlled high-performance machine with variable speed.
