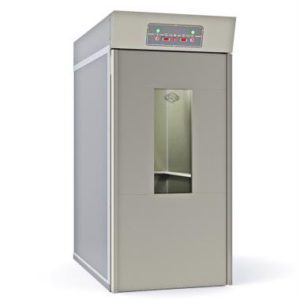

Proofer for rack oven

Automatic climatised proofer for bakeries.

Reaches automatically desired temperature and humidity.

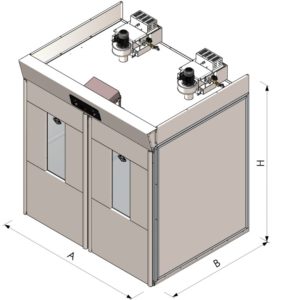

For 1,2 of 4 racks 40×60 / 40×80 / 50×70 / 60×80 / 80×100 / 80×120

Example for 2 racks 60×80:

Constructive characteristics

Number of doors nr. 1
Number of racks nr. 2
Tray dimensions cm 60×80
Weight 180 Kg
Working width 900 mm
Working height 1960 mm

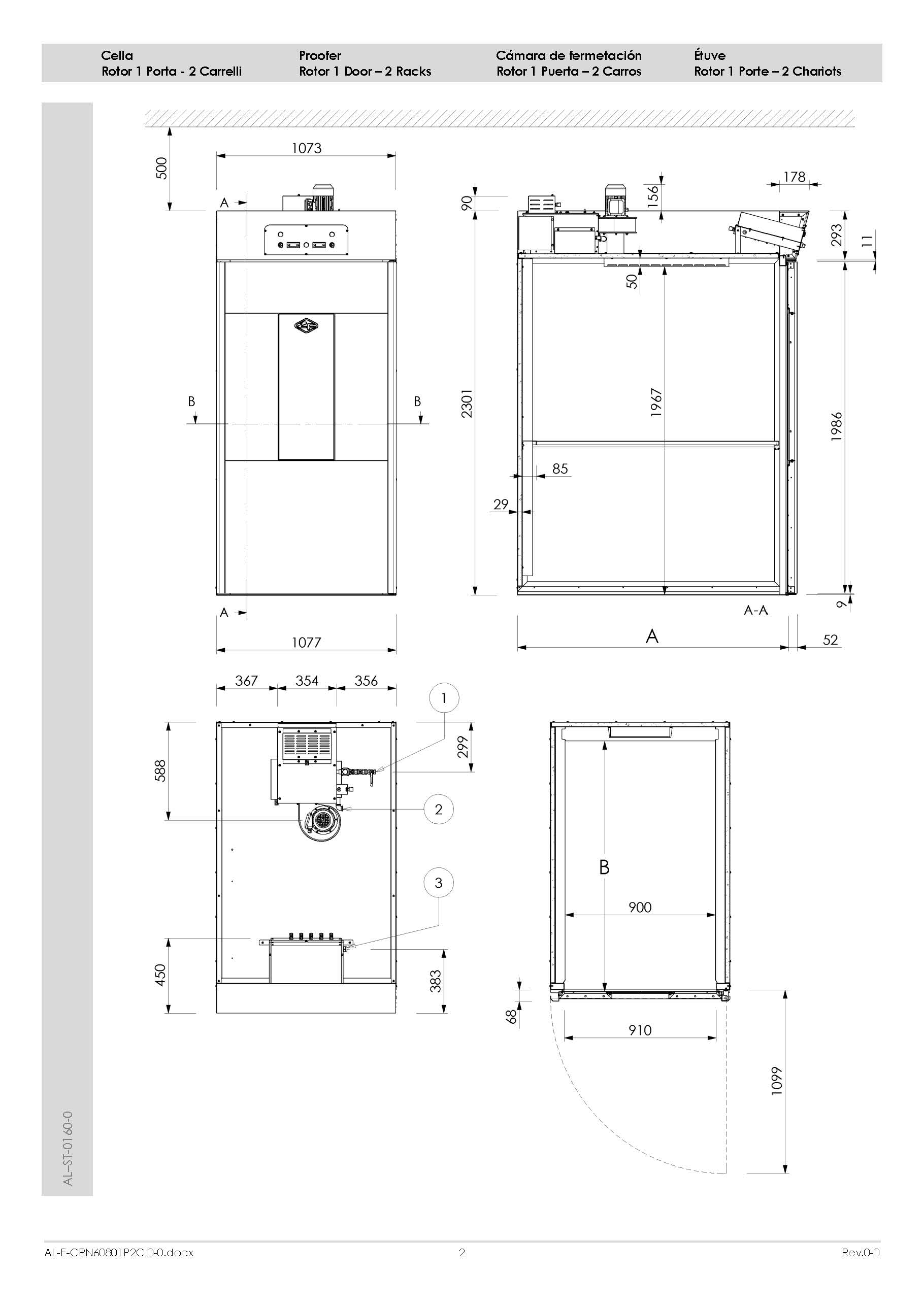

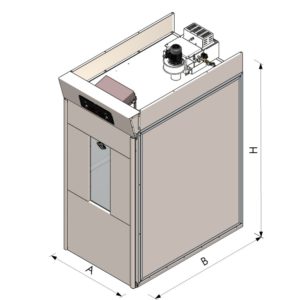

Working depth 1490 mm  see dimension “B” in the drawing on page 2
Depth base 1620 mm  see dimension “A” in the drawing on page 2
Thick insulation panels 27  mm

Technical characteristics

Max working temperature °C 45 45
Max working humidity % 90 90

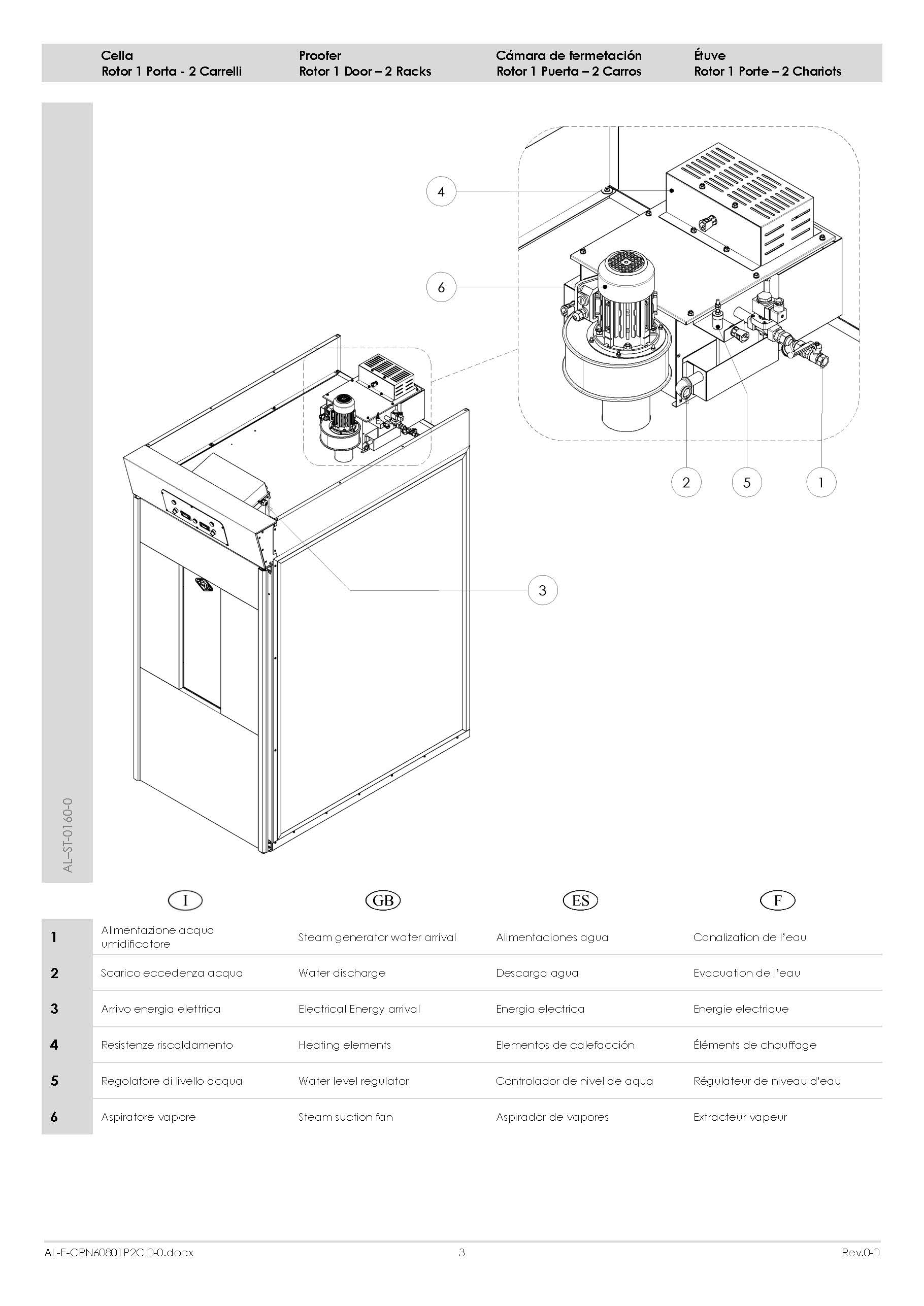

Steam suction fan characteristics

Air flow m3/min 1÷6 1÷6 mod. BP-100
Motor power hp 0,25 0,25 a 4 poli, 1400 giri/min mod. H63B4VE/B5

Steam generator characteristics

Incoming water pressure bar 1,5 1,5
Diameter water arrival pipe inch ½” ½”
Diameter water discharge pipe inch ½” ½”

Installed capacities

Electrical power : HEATING kw 3 3
Electrical power : HUMIDIFICATION kw 1 1
Electrical power : TOTAL kw 4 4
